Rotary Dryer

Rotating drum for drying bulk solids

Rotary Dryer
  • Rotary Dryer
  • Rotary Dryer
  • Rotary Dryer

    • Rotary Dryer

    Rotating drum for drying bulk solids

    The rotary dryer operates by introducing heated air while the inclined drum continuously rotates, allowing wet materials to move forward and exchange heat effectively with the air. Widely used in agriculture, chemicals, and mining, it caters to various production scales and material types.

    Request a Quote
    • Rotary Dryer
    • Rotary Dryer
    • Rotary Dryer
    • Rotary Dryer
    • Rotary Dryer
    • Rotary Dryer
    Features
    • Constructed with a high-precision ground base, offering high concentricity and reduced wear, resulting in longer operational life.

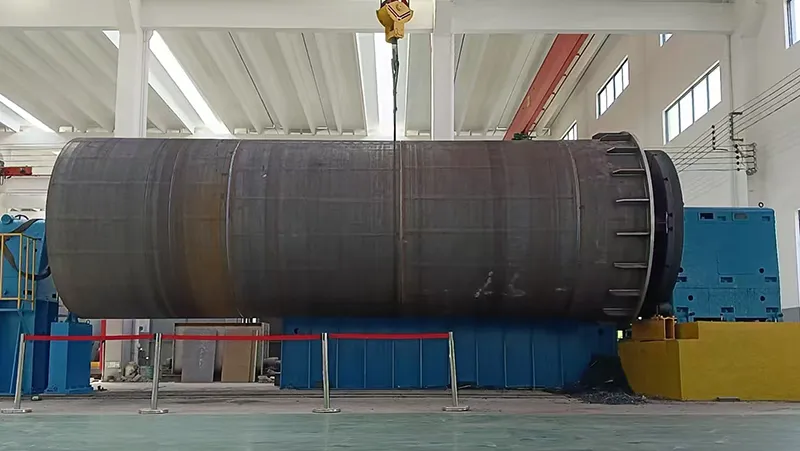

    • The drum features flange connections, ensuring precise alignment and easy maintenance or replacement.

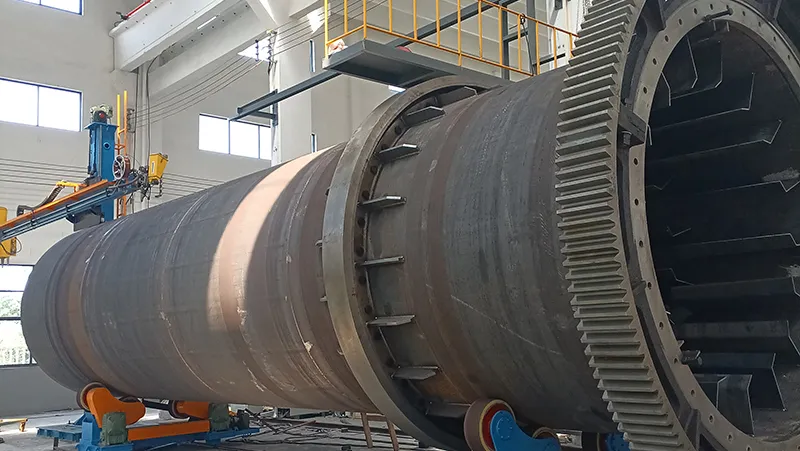

    • Critical components like the gear ring, rolling rings, and support rollers are crafted from high-quality cast steel for improved wear resistance and longevity.

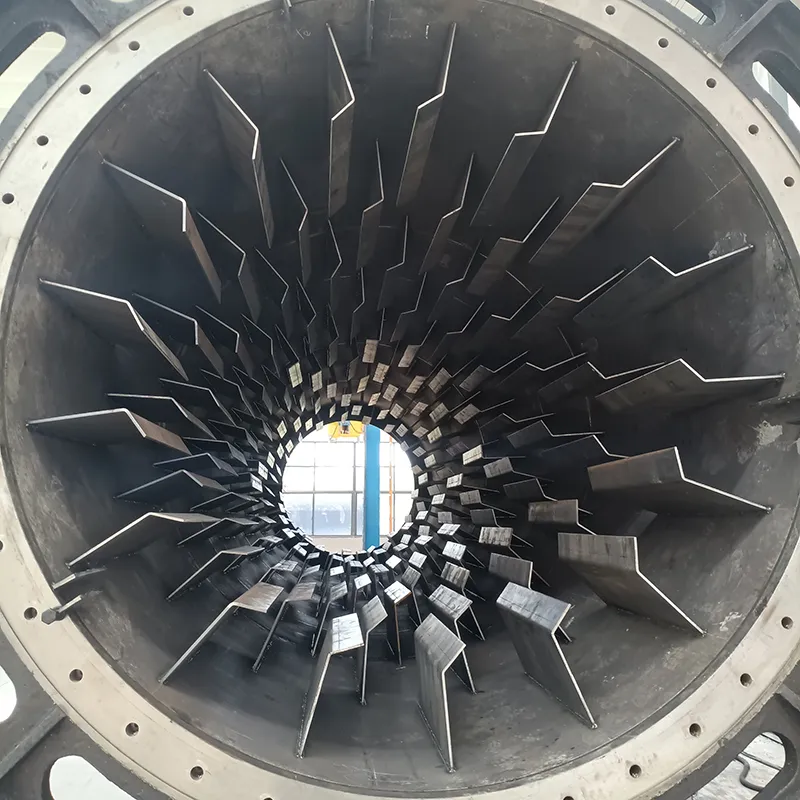

    • Internally, the layout of the lifting plates is optimized for spacing and angle, enhancing heat efficiency while considering the material’s specific properties.
    • Equipped with external hammering devices to prevent materials from sticking to the drum walls effectively.
    Specifications
    Drum size (m) Drum Production capacity (t/h) Flow direction Reducer Motor Dimensions (L×W×H) (mm) Weight (t)
    Inner diameter (mm) Length (mm) Inclination (°) Rev. (r/min) Model Ratio Model Power (kW)
    Ø1.2×10 1200 10000 2.5 6.1 1-1.5 Downstream JZQ500 31.50 Y160M-6 7.5 10000×2280×2245 13.0
    Ø1.5×14 1500 14000 2.5 4.28 3-4 ZQ650 31.50 Y200L-6 18.5 15750×3085×3180 21.0
    Ø1.6×16 1600 16000 2.5 5 4-5 ZQ650 23.34 Y200L1-6 18.5 17500×3232×3500 26.0
    Ø1.8×18 1800 18000 2.5 5 5-7 ZQ650 23.34 Y200L1-6 18.5 19614×3438×3673 30.0
    Ø2.0×20 2000 20000 2.5 6 7-10 ZL65 22.50 Y225M-6 30 22091×3232×4445 43.0
    Ø2.2×22 2200 22000 2.5 3.29 8-14 ZL65 40.00 Y250M-6 37 23400×4593×3810 50.0
    Ø2.4×24 2400 24000 2.5 2.82 12-16 ZL75 45.00 Y280S-6 45 25630×4097×5932 70.0
    Ø2.6×26 2600 26000 2.5 3.8 20-25 ZL100 35.50 Y280M-6 55 27750×3100×5810 84.0
    Ø2.8×28 2800 28000 2.5 2.66 18-20 ZL115 45.00 Y280S-6 75 29630×4220×5110 100.0
    Ø2.8×34 2800 34000 2.5 2.65 18-20 ZL115 45.00 Y315M-6 110 37500×4050×5350 111.0
    Ø3.0×28 3000 28000 2.5 3.96 20-22 ZSY450 45.00 Y315M1-4 132 30615×5960×6450 130.0
    Ø3.2×25 3200 25000 2.5 4.0 20-30 ZSY450 45.00 Y315M-4 185 29500×6500×6300 138.0
    Ø3.4×34 3400 34000 1.8 2.56 20-30 ZL130 45.00 Y2-355M2-6 200 34600×6678×6540 175.0
    Ø3.6×34 3600 34000 1.8 2.51 30-40 ZL130 40.00 YKK3554-4 250 34600×6890×6540 209.0
    Ø4.0×34 4000 34000 1.8 2.09 40-45 ZSY630 90.00 YKK4003-4 315 36466×7800×6800 232.0
    Ø4.2×34 4200 34000 2.5 2.15 42 ZSY630 80.00 YKK4005-4 400 37466×8000×6800 250.0
    Ø4.5×34 4500 34000 1.8 1.85 160 ZSY630 80.00 YKK4502-4 500 38000×8300×7200 290.0
    FAQ

    Drum granulation:

    • Gathering raw materials such as nitrogen, phosphorus, potassium, and other essential minerals
    • Mixing and blending the materials thorough
    • Heating and processing the mixture to form granules
    • Drying and cooling the granulated product to prepare for packaging

    Extrusion granulation:

    • Drying the raw mixture and grinding it into a fine powder
    • Pressing the powder into granules
    • Screening the granules to ensure uniformity

    Fertilizer manufacturers often deal with issues related to quality control, production costs, environmental regulations, and supply chain management. With extensive experience in the industry, we provide practical solutions to help address these challenges and ensure efficient production.
